Weekday Peak Time
07:40~08:40
I1~I7 I1~I7 I8~I9 I8~I9 I10 I10
(on) (off) (on) (off) (on) (off)
B1(IN) Close Open N//A N//A N//A N//A
B2(IN) Open N//A Close N//A N//A N//A
B3(IN) N//A N//A Open N//A Close N//A

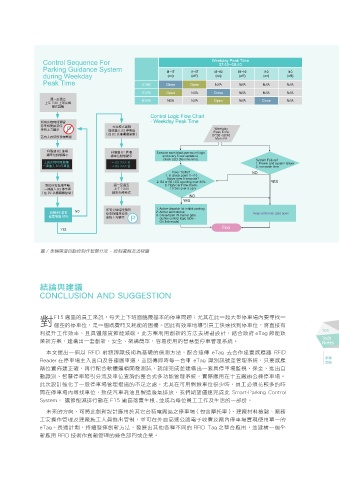

Control Logic Flow Chart
- Weekday Peak Time
P Peak Time
Weekday
07:30~08:40
Mon~Fri

Execute each block pre-count logic
and every 5 sec update to
block LED (No time limit) System Failure?
1. Power and system failure
2. non peak time
Floor Traffic? NO
1. In check point I1~I10
Active over 5 seconds?
2. B2 or B3 LED counting over 80% YES
3. High Car Flow check:
10 Sec over 5 cars
NO
YES
1. Active dispatch lot inhibit parking
2. Active alert device Keep all barrier gate open
P 3. Close/open IN barrier gate
(active control logic table -
On Job mode)
End
