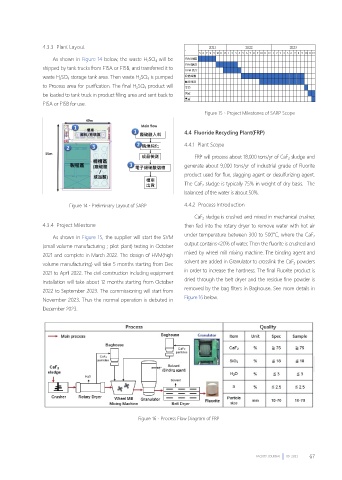

4.3.3 Plant Layout
As shown in Figure 14 below, the waste H 2 SO 4 will be
shipped by tank trucks from F15A or F15B, and transferred it to
waste H 2 SO 4 storage tank area. Then waste H 2 SO 4 is pumped
to Process area for purification. The final H 2 SO 4 product will
be loaded to tank truck in product filling area and sent back to
F15A or F15B for use.

Figure 15、Project Milestones of SARP Scope

4.4 Fluoride Recycling Plant(FRP)

4.4.1 Plant Scope
FRP will process about 18,000 tons/yr of CaF 2 sludge and
generate about 9,000 tons/yr of industrial grade of Fluorite
product used for flux, slagging agent or desulfurizing agent.
The CaF 2 sludge is typically 75% in weight of dry basis. The
balanced of the water is about 50%.

Figure 14、Preliminary Layout of SARP 4.4.2 Process Introduction

CaF 2 sludge is crushed and mixed in mechanical crusher,
4.3.4 Project Milestone then fed into the rotary dryer to remove water with hot air
under temperature between 300 to 500℃, where the CaF 2
As shown in Figure 15, the supplier will start the SVM
output contains<20% of water. Then the fluorite is crushed and
(small volume manufacturing ; pilot plant) testing in October
mixed by wheel mill mixing machine. The binding agent and
2021 and complete in March 2022. The design of HVM(high
solvent are added in Granulator to crosslink the CaF 2 powders
volume manufacturing) will take 5 months starting from Dec
in order to increase the hardness. The final Fluorite product is
2021 to April 2022. The civil construction including equipment
dried through the belt dryer and the residue fine powder is
installation will take about 12 months starting from October
removed by the bag filters in Baghouse. See more details in
2022 to September 2023. The commissioning will start from
Figure 16 below.
November 2023. Thus the normal operation is debuted in
December 2023.

Figure 16、Process Flow Diagram of FRP
